With a compact, self-contained design, Lanemark FDC burners are ideally suited to direct fired applications and offer key advantages that are at the heart of industrial oven design. Excellent turndown capability ensures efficient operation and enables every installation to match precise processing requirements.
Offering flexible, high turndown (gas-only) control for process air heating applications, convection ovens and dryers, each installation offers short flame profiles – recognised as extremely important for industrial oven design – while stable combustion results directly from the conical burner head design.
FDC burners incorporate a burner wind box, combustion air fan, manual sliding damper, compact mono-bloc gas valve train and controls so that every FDC installation is packaged to occupy minimum installation space. Each model incorporates a steel control box with a choice of either natural gas or propane fuel options to ensure that each installation meets the requirements of individual site applications.
Download the FDC Burner data sheet here.
| Model | Gas Connection | Heat Input Range |
|---|---|---|
| FD5C | ¾” | 9 – 117 kW |
| FD5C | 1” | 9 – 220 kW |
| FD10C | 1” | 13 – 352 kW |
| FD10C | 1½” | 13 – 440 kW |
| FD15C | 1½” | 18 – 660 kW |
| FD20C | 2” | 25 – 880 kW |

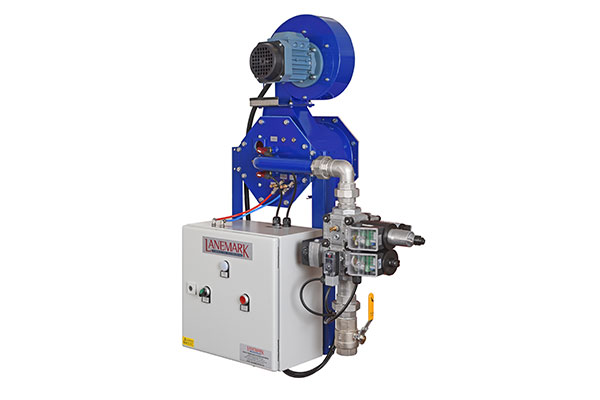

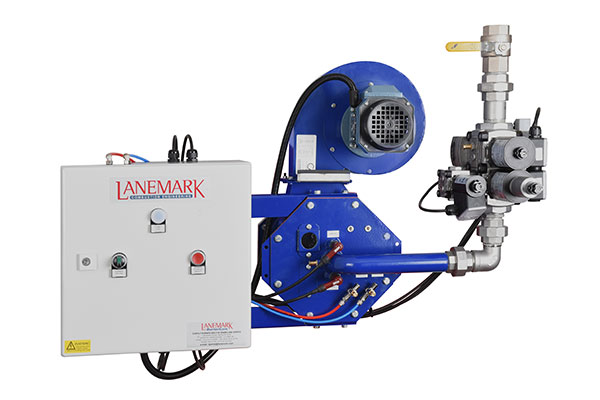

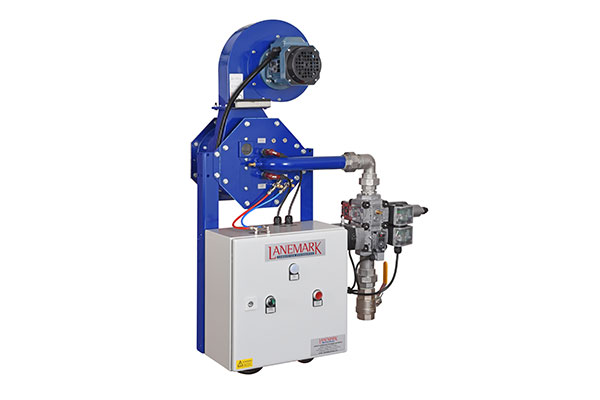

Each FDC packaged burner includes:
a) Burner windbox
b) Combustion air fan
c) Manual sliding air adjustment damper
d) Compact monoblock valve gas valve train
e) Burner control panel
Standard control items include a burner controller, ignition transformer and differential air pressure switch. Two 3-way air valves perform safety checks on the air pressure switch in both open and closed modes each time the burner fires, allowing the independent operation of the combustion air fan in conjunction with oven/dryer main recirculation fans.
| Standard | Options | |
|---|---|---|
| Fuels | Natural gas | Propane |
| Control voltages | 230V | 110V |
| Combustion air fan electrical supplies | 400V/3ph/50Hz | 230V/1ph/50Hz |
| Flame sensing | Flame electrode | UV |
| Heat output control options | On/off High/low | Modulating (gas only) (4-20mA/0-10VDC or 3 Wire 230V/110V/24V) |
Product finishing
- Pre-treatment dryers
- Final treatment ovens for paint drying & curing
- Conveyor and batch ovens
Textile and fabric dryers
Rotary moulding machines
Food processing
Powder and grain dryers
Lanemark FD burner system assemblies are tested prior to despatch and conform to relevant sections of either European Standard EN 746 Part 2 or the requirements of NFPA 86 for US applications.
