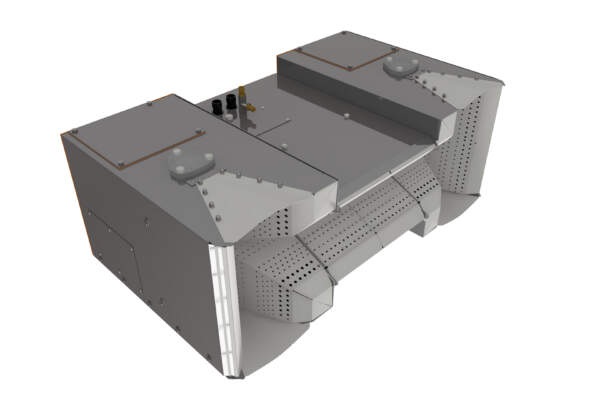

Lanemark FDB-T series packaged burners provide versatile, high turndown (gas and air) control for process air heating applications such as convection ovens, dryers, and spray booths.
FDB burners offer an alternative short rectangular flame profile compared to the circular combustion output provided by the alternative FDGA range.
Like the FDGA burner range, FDB burners can incorporate Lanemark’s ‘Air Pressure Lead’ (APL) technology, so that all FDB series burners offer an excellent combination of combustion efficiency and emissions control and are especially suited to systems utilizing variable process airflows.
Variable combustion air fan speed control combined with modulating mono-block gas valve technology ensures that safe and efficient gas/air ratios are maintained even under changeable plant operating conditions. Units offer a choice of operation on either natural gas or propane and are particularly suitable for direct fired operations where short flame lengths are a priority.
Download the FDBT Burner data sheet here.
| Model | Max Heat Input Range | Burner Length | Typical Gas Connection Size |
|---|---|---|---|
| FDB04T | 18-600 kW | 421 mm | 1.5" BSP |
| FDB04T | 25-700 kW | 421 mm | 2" BSP |
| FDB05T | 30-875 kW | 578 mm | 2" BSP |
| FDB06T | 30-925 kW | 735 mm | 2" BSP |
| FDB07T | 45-1050 kW | 685 mm | CALL |
| FDB08T | 45-1225 kW | 842 mm | CALL |
| FDB09T | 45-1400 kW | 999 mm | CALL |
| FDB10T | 45-1575 kW | 1156 mm | CALL |
Dimensions
| Model | A | B |
|---|---|---|
| FDB04T | 421 | 340 |
| FDB05T | 578 | 340 |
| FDB06T | 735 | 340 |
| FDB07T | 685 | 340 |
| FDB08T | 842 | 340 |
| FDB09T | 999 | 340 |
| FDB10T | 1156 | 340 |
Each FDB packaged burner includes:
a) Burner windbox
b) Combustion air fan (multiple internal duct/external duct mounting options available)
c) Manual air adjustment damper (if required)
d) Compact monoblock air/gas regulator valve train (Models: FDB01 – FDB06)
e) Burner control panel (including combustion air fan speed controller)
Standard control items include a burner controller, ignition transformer and differential air pressure switch. Two 3-way air valves perform safety checks on the air pressure switch in both open and closed modes each time the burner fires, allowing the independent operation of the combustion air fan in conjunction with oven/dryer main recirculation fans.
| Specifications | Standard Equipment | Options |
|---|---|---|
| Fuels | Natural gas | Propane |
| Control voltages | 230 V / 1 ph / 50 Hz | 110 V / 1 ph / 50-60 Hz |
| Combustion air fan electrical supplies | 400 V / 3 ph / 50 Hz or 230 V / 3 ph / 50 Hz | |
| Flame sensing | Flame electrode | UV Scanner |
| Heat output control options | Modulating (gas only) 4-20 mA / 0-10 V DC / 3 Wire Direct Drive | Ultra low |
Paint spray booth air heating – spray and bake cycles
HVAC air replacement schemes
- factories
- warehouses
- distribution centres
Crop dryers
Print media dryers
Paint drying and curing ovens
Lanemark FD burner system assemblies are tested prior to despatch and conform to relevant sections of either European Standard EN 746 Part 2 or the requirements of NFPA 86 for US applications.
